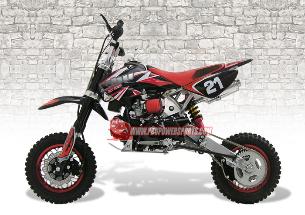

PBU PIT BIKES
TOP QUALITY PIT & DIRT BIKES
SPECIFICATIONS

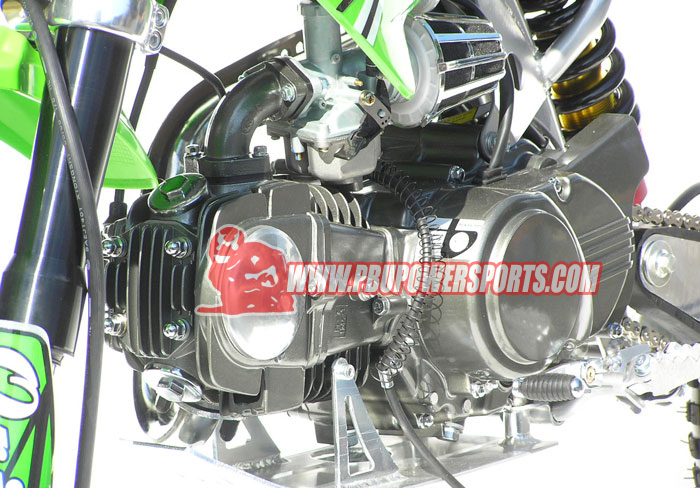

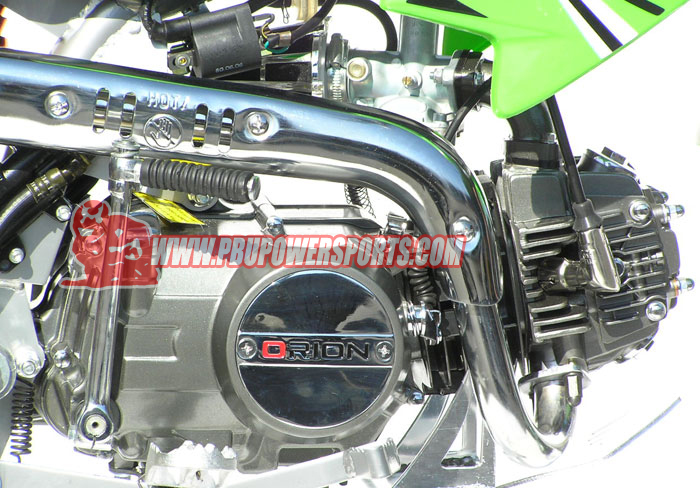

ENGINE TYPE
125CC, 4-stroke single cylinder air cooled

BORE & STROKE

STARTER
kick start

IGNITION
CDI

COMPRESSION
9.0:1


DRIVE TRAIN

TRANSMISSION
manual, 1 down 3 up

CLUTCH
manual

FINAL DRIVE
chain

CHASSIS / SUSPENSION / BRAKES

FRAME
high strength steel

FRONT FORKS
adjustable inverted hydraulic shocks

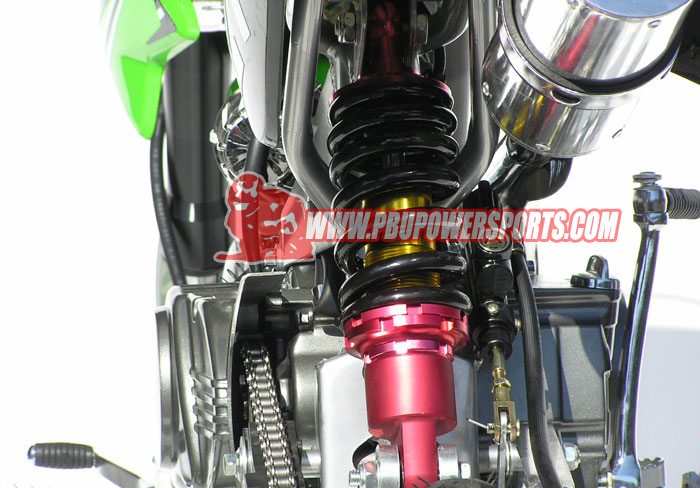

REAR SHOCK
adjustable nitrogen air gas shock

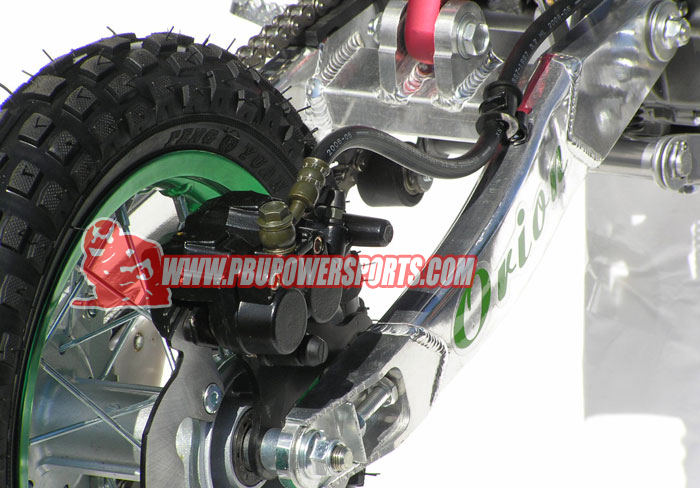

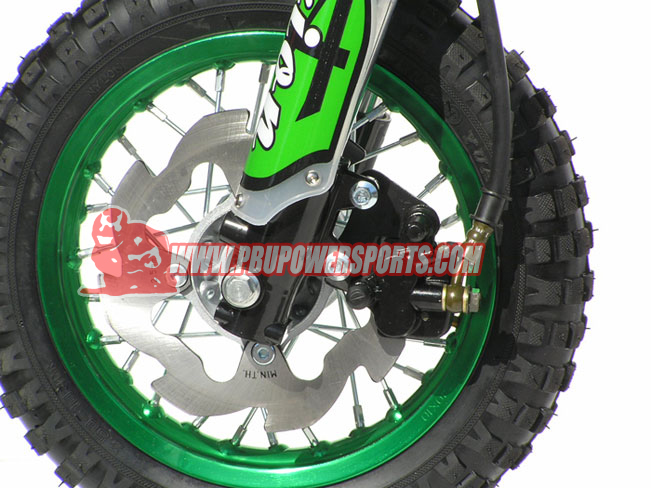

F & R BRAKES
front & rear hydraulic disc DIMENSIONS /
CAPACITY

SEAT HEIGHT
28.5"

WHEEL BASE
45.25"

F & R WHEEL
front: 2.5-10" ; rear: 3.00-10"

L x W x H
57" x 26.7" x 37.8"

PACKAGE SIZE
55.3" x 16.7" x 26.7"

TANK CAPACITY
0.80 gallons

GW / NW:
169 LBS / 134 LBS
